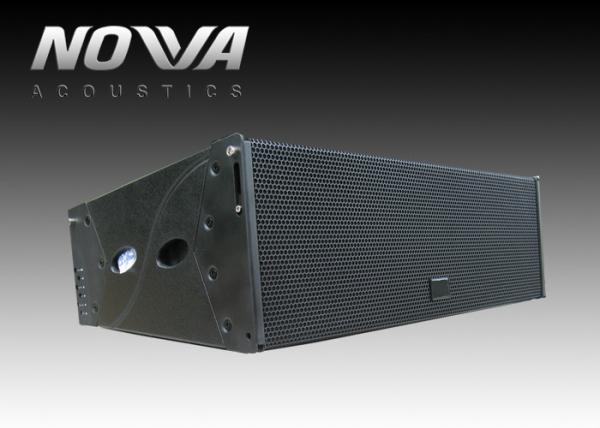

Large Stadium Line Array Speakers System For Living Show / Theatre

Brand Name : NOVA acoustics

Model Number : CA2712

Certification : CE, RoHS, SGS

Place of Origin : Guangzhou, China

MOQ : 8pcs

Payment Terms : T/T, Western Union

Supply Ability : 8000pcs per year

Delivery Time : 10-15 working days after receiving payment

Packaging Details : Hard packing carton or Flightcase at extra cost

Type : Dual 12 inch 3-way passive line array speakers

Components : LF: 12"X2, MF: 7"X2, HF: 1.75"X2

RMS power : LF:800W, MF:220W, HF:100W

Peak power : LF: 1600W, MF:880W, HF:400W

Max SPL : 136dB

Applications : Living Event,Touring,Living Show, theatre, outdoors performance

Color : Black

HS code : 85182200

Contact Now

Large Stadium Arena Sound System Line Array Speaker for Touring Concert (CA-2712)

Description:

NOVA Introduces the CA series compact line array system for large and medium sound reinforcement applications. Designed for use in football, baseball and soccer stadiums, race tracks and parking areas. theaters, houses of worship and performing arts centers, the system provides audio professionals with a lightweight, high output array that offers exceptional audio fidelity.

Features:

  • l High output to size/weight ration. Size and output capabilities allow it to be used in the widest variety of venues.

  • 4400 Watt Peak power - 1100 Watt RMS

  • 136 dB max SPL

  • 45 Hz 20 KHz frequency response

  • 2pcs 12 inch High-performance woofer with long-life, high reliability, and unsurpassed low-frequency reproduction

  • 2pcs 7 inch high quality mid woofers

  • USA paper cone for woofer and mid woofers

  • 2pcs 1.75 inch high fidelity customs-made compression driver unit

  • Smooth frequency response, clean and clear sound

Applications:

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.

Specifications:

Model Number CA2712 CA-2212 CA-0010 CA008
Frequency Response 45HZ-20KHz (-10dB) 55HZ-19KHz (-10dB) 120Hz-20KHz (-10dB) 120Hz~20 KHz (3dB)
　 50Hz-19KHz ( ±3.5dB) 50Hz-18KHz ( ±3.5dB) 130Hz-19KHz (±3.5dB) 　
RMS power HF: 100W, MF: 220W, LF:800W HF: 150W, LF:800W HF:80W, LF:600W 350W
Program power HF: 200W, MF: 440W, LF:1600W HF:300W, LF:1600W HF:160W, LF:1200W 700W
Peak power HF: 300W, MF: 660W, LF:2400W HF:450W, LF2400W HF:300W, LF1800W 1050W
Norminal Impedance HF:4Ohm, MF:16Ohm ,LF:4Ohm HF:8Ohm, LF:4Ohm HF:8Ohm, LF:4Ohm 16Ohm
Sensitivity 108dB/w/m 105dB/w/m 101dB/W/M 101dB/M/W
Max SPL 136dB 134dB 120dB 126B
Component 2x12"+2X7"+2X2" 2x12"+3" 10" x2 +2" 8" x2 +2"
Coverage Angle 90° H X10°V 90° H X10°V 90°H X10°V 100°H X7°V
Dimension (370x265) x 1175 x 610mm (370x270) x 920 x 570mm (300x230)x800x445mm (245x190)x640x335mm

Quality is our culture.
With us your business in safe, your money in safe.


We can offer you:

  • Competitive advantage products
  • Factory price
  • Confidentiality agreement
  • Quality assurance contract
  • After-sales service 24*7
